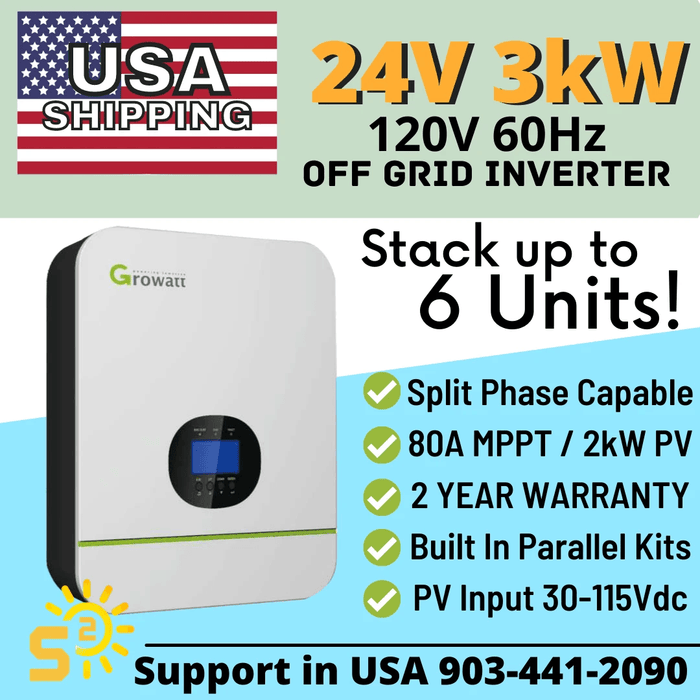

3kW 24V 150VDC 80A Off-Grid Inverter by Growatt
This is a listing for: a 24V 3kw Off Grid 120V inverter
This is perfect for your essential loads! Purchase two for 120/240V TRUE Split phase Capacity!
This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter, and a UPS function module in one machine. This is perfect for off grid/backup power and self-consumption applications. The transformerless design provides reliable power conversion in compact size.
The whole system also needs other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi 1 GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system via mobile phone or from the website anytime anywhere.
Technical Information:
- Rated Power: 3000VA/ 3000W
- Surge Power: 6000VA
- Efficiency (Peak): 93%
- Waveform: Pure Sine Wave
Solar Charger
- Maximum PV Array Power: 2000W
- MPPT Range @ Operating Voltage: 60VDC ~115VDC
- Maximum PV Array Open Circuit Voltage: 145VDC
- Maximum Solar Charge Current: 80A
- Maximum Efficiency: 97%
- Standby Power Consumption: 2 W
AC Charger
- Charge Current: 60A
- AC Input Voltage: 120 VAC
- Selectable Voltage Range: 95-140 VAC (For Personal Computers) ; 65-140 VAC (For Home Appliances)
- Frequency Range: 50Hz/60Hz (Auto sensing)
Physical
- Dimension (D/W/H) in mm: 130/350/455
- Net Weight : 24lbs
